The TS Photoline is a universal telescope for all areas of observation and photography and, of course, for astronomy. The contrast performance of the apo will surprise you in this field, too. See fine details of the moon´s surface or observe the planets of our solar system.
#Ts optics photoline 72mm f 6 fpl53 free#
The 72 mm APO lens, free from colour aberrations, allows magnifications up to approximately 200x. Observations of animals and the countryside with maximal image brightness even in twilight become possible, also observing extended nebula regions with nebula filters. By using a 2" Paragon ED 35 mm eyepice and a 2" star diagonal, a true field of view of 5.7 degrees can be obtained, at 12x magnification. Thus a gigantic magnification range with high field of view is available to you.
#Ts optics photoline 72mm f 6 fpl53 full#
Observing with the Photoline 72 mm f/6 Apo: The generous working distance of the apo allows even using 2" eyepieces at full illumination. Correctors and adapters are linked at the accessory recommendations, of course. The optimal working distance from the T2-thread of the reducer to the sensor is 55 mm.
We recommend the corrector for DSLR cameras up to APS-C sensors and also for astro cameras with medium sized sensors. TSRed08-72 - TS corrector with focal length reduction - The corrector shortens the focal length of the apo from 420 mm to 331 mm and improves the focal ratio to f/4.74. The optimal working distance from the M48 connecting thread to the camera sensor is 55 mm. The corrector offers full correction and a good illumination up to full-frame sensors. TSFLAT72 - Corrector without change of focal length - The corrector leaves the focal length at 432 mm and the focal ratio at f/6. A corrector is always necessary for maintaining good sharpness to the edge. This allows for trouble-free operation of our optional field correctors. Photography with the Photoline 72 mm f/6 apo: The apo has a large back focus of 135 mm from the 2" receptacle of the focuser. Despite very good mechanics, the apo is a true lightweight with only 2.18 kg, and with a length of only about 310 millimetres, the telescope has space even in the hand luggage. For this reason, we have equipped the telescope with a modern 2.5" rack and pinion focuser which can hold even heavy accessories like CCD cameras. The goal was to construct a compact and powerful telescope which is also attractive for the demanding astrophotographer. Finder shoe on the focuser is included - Weight only 2.18 kg - transport length only 31 cm TS Photoline 72/432 mm Apo - a perfect travel scope for observers and photographers Lead-managed by Teleskop Service, this high-quality Photoline apo with an FPL53 element from Ohara (Japan) was created.

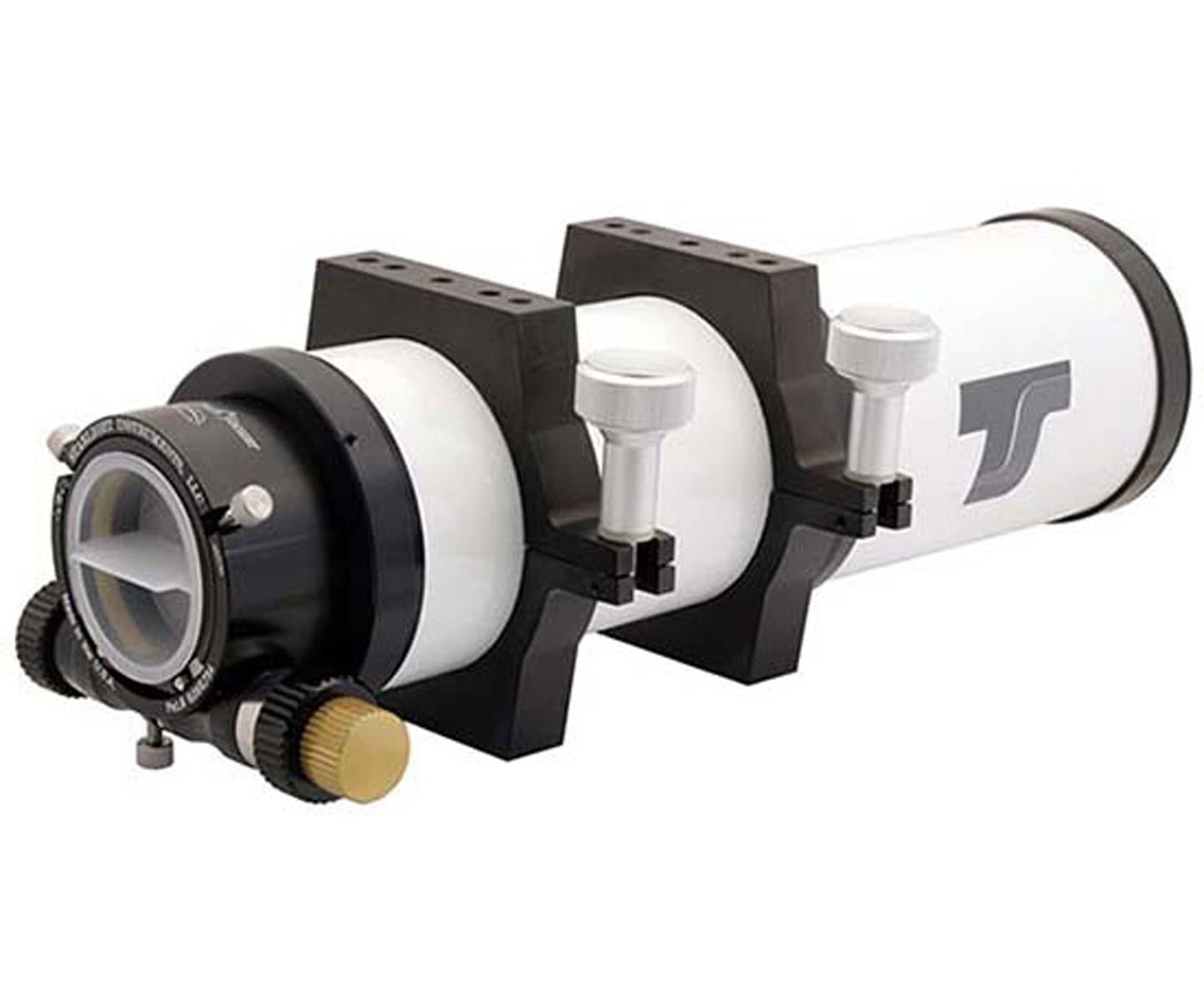

Fast focal ratio: f/6 - FPL53 doublet objective (Ohara Japan), air-spaced - additional lanthanum glass element, so no chromatic aberration - 2.5" dual-speed rack-and-pinion focuser - ball bearing mounted for maximum load with M63x1 female thread for adaptions - Retractable dew shield - the apo even fits into the hand luggage - CNC tube rings with versatile dovetail bar - EQ5 style and with photo tripod connection. TS-Optics Doublet SD Apo 72 mm f/6 - FPL53 / Lanthanum Glass Objective TS Photoline APO refractor wit 72 mm aperture and fast f/6 focal ratio, a great travel telescope for observation and astrophotography : - Powerful, aberration-free apochromatic refractor with 72 mm aperture and 432 mm focal length. TS-Optics Doublet SD Apo 72 mm f/6 - FPL53 / Lanthanum Glass Objective. Item: 393442039228 TS-Optics Doublet SD Apo (rifrattore) 72 mm f/6 - FPL53 Obiettivo, TSAPO72F6.
